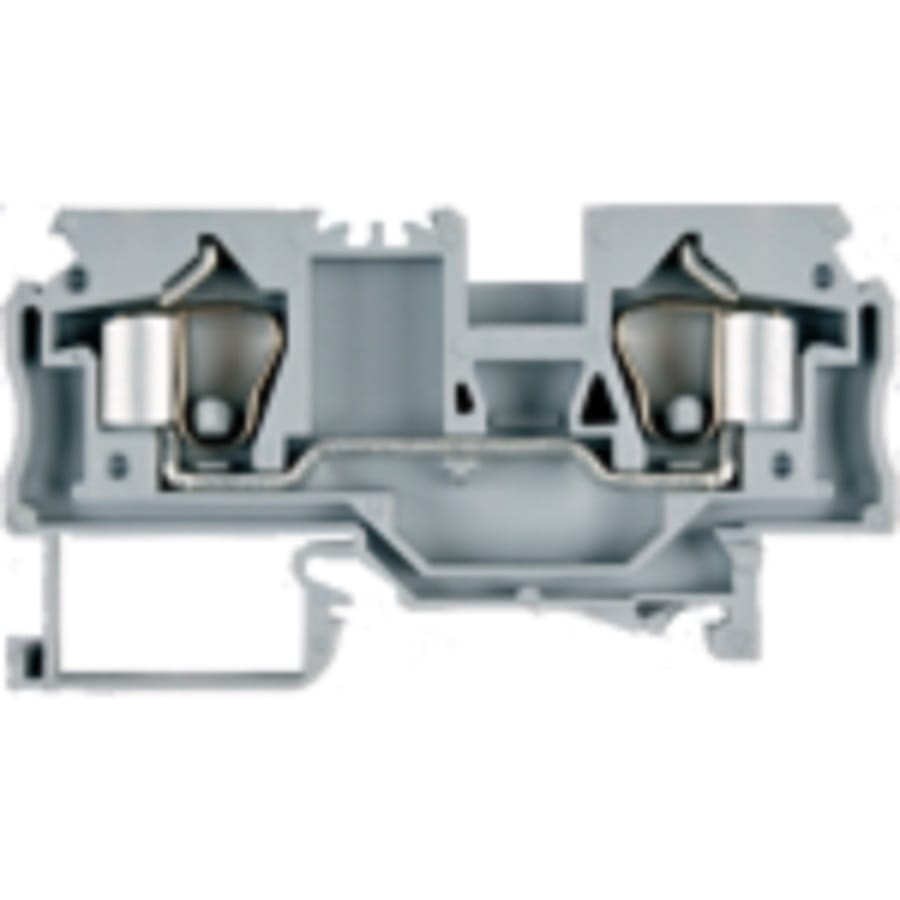

Elmex DST 10 Spring Clamp Terminals Feed Through (35mm Rail Mounted) Grey
DST 10 Grey Spring Clamp Terminal Feed Through
Share:
I am a tooltip
You may also like
-
Emerson KCE425HAG-V230H Reciprocating Compressor R134A 230V, 50Hz, 1Phase
Original price was: ₹7,622.00.₹7,165.00Current price is: ₹7,165.00. -
Mennekes 264 32A 4PIN IP44 400V PLUG TOP
Original price was: ₹1,345.00.₹740.00Current price is: ₹740.00. -
Schneider 6A 4 Pole B Curve MCB Acti 9 A9N4P06B (Copy)
Original price was: ₹3,030.00.₹1,333.00Current price is: ₹1,333.00. -
Schneider A9N1P06C 06A 1 Pole C Curve MCB Acti 9
Original price was: ₹415.00.₹146.00Current price is: ₹146.00. -
Schneider CA2KN31M7 Control Relay 3NO+1NC 220V 10A Thermal Rating
Original price was: ₹1,595.00.₹754.00Current price is: ₹754.00. -
Siemens Weekly Time Switch Profi digital 230 V 16A 1-Channel 7LF45210
Original price was: ₹26,700.00.₹17,035.00Current price is: ₹17,035.00.
Elmex DST 10 Grey Spring Clamp Terminals – Feed Through (35mm Rail Mounted) -ESP- Every Spare Parts.
| General Data | |
| Type | DST10 |
| Wire Termination Technology | Spring Cage Connection |
| Ratings | 800 V / 57 A / 10 sq mm / NAP Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty | 100 |
| Country of Origin | India |
| Dimensions & Weight | |
| Height (mm) | 42 |
| Height (inches) | 1.65 |
| Width (mm) | 76.5 |
| Width (inches) | 3.01 |
| Thickness (mm) | 10 |
| Weight For Standard Packing Qty (Kg) | 2.5 |
| Material Data | |
| Housing | PA 66 |
| Standard Colour | Gray |
| Other Colour Variants | Black, Blue, Grey, Red, Yellow |
| Rated Conductor Size | |
| Stranded Wire – min (sq mm) | 1.5 |
| Stranded Wire – max (sq mm) | 10 |
| Solid Wire – min (sq mm) | 1.5 |
| Solid Wire – max (sq mm) | 10 |
| Ratings – IEC | |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 800 |
| Rated Current(A) | 57 |
| Rated Cross Section (sq mm) | 10 |
| Short Time Withstand Current (kA) | 1.2 |
| Rated Impulse Withstand Voltage (kV) | 8 |
| Pollution Degree | III |
| Ratings – ATEX | |
| Rated Voltage (V) | 630 |
| Rated Current (A) | 45 |
| Rated Cross Section (sq mm) | 10 |
| Ratings – CSA | |
| Rated Voltage (V) | 600 |
| Rated Current (A) | 50 |
| Wire Cross Section – min (AWG) | 16 |
| Wire Cross Section – max (AWG) | 8 |
PAN India Delivery and Cash on Delivery (COD) available.
Product may differ (eg. colour, appearance) from the product Image displayed on website. Kindly check the technical specifications provided in description to better purchase decision.
| Weight | 2.5 kg |
|---|---|
| Dimensions | 100 × 7.65 × 4.2 cm |
| Terminal Rating | 800 V/57 A/10 sq mm |
| Colour | Grey |
| HSN Code | 85389000 |
