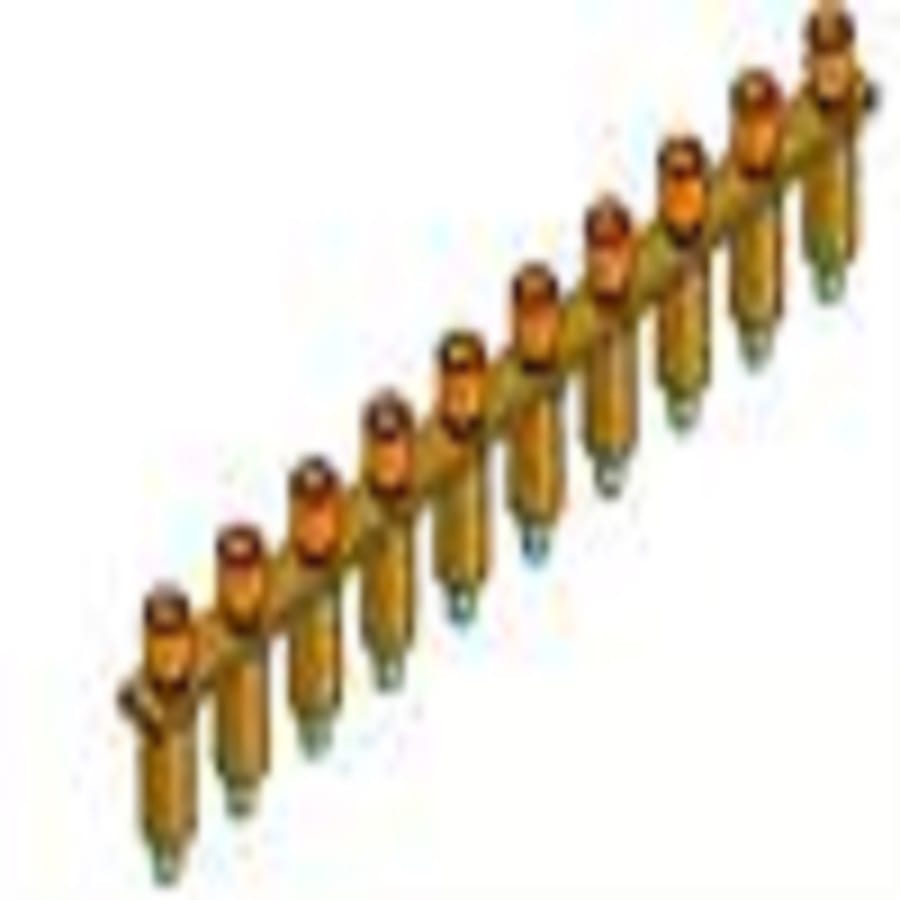

Buy Elmex Shorting Link for KUT 25 CCLA25 Std. Colour online in India.
General Data
Type
KUT 25
Wire Termination Technology
Screw Clamp
Ratings
1000V 101A 25 sqmm 2.3 Nm
GTIN / Harmonize Custom Code
85389000
Standard Packing Qty
50
Country of Origin
India
Dimensions & Weight
Height (mm)
56
Height (inches)
2.2
Width (mm)
45
Width (inches)
1.77
Thickness (mm)
12
Weight For Standard Packing Qty (Kg)
1.8
Material Data
Housing
PA 6,6
Standard Colour
Grey
Other Colour Variants
Black, Blue, Grey, Red, Yellow
Rated Conductor Size
Stranded Wire – min (sq mm)
6
Stranded Wire – max (sq mm)
25
Solid Wire – min (sq mm)
6
Solid Wire – max (sq mm)
25
Ratings – IEC
Standard
IEC 60947-7-1
Rated Voltage (V)
1000
Rated Current(A)
101
Rated Cross Section (sq mm)
25
Short Time Withstand Current (kA)
3
Rated Impulse Withstand Voltage (kV)
8
Pollution Degree
III
Ratings – ATEX
Rated Voltage (V)
750
Rated Current (A)
101
Rated Cross Section (sq mm)
25
Ratings – CSA
Rated Voltage (V)
600
Rated Current (A)
115
Wire Cross Section – min (AWG)
10
Wire Cross Section – max (AWG)
2
Ratings – uL
Rated Voltage (V)
600
Rated Current(A)
115
Conductor Size – min (AWG)
10
Conductor Size – max (AWG)
2
