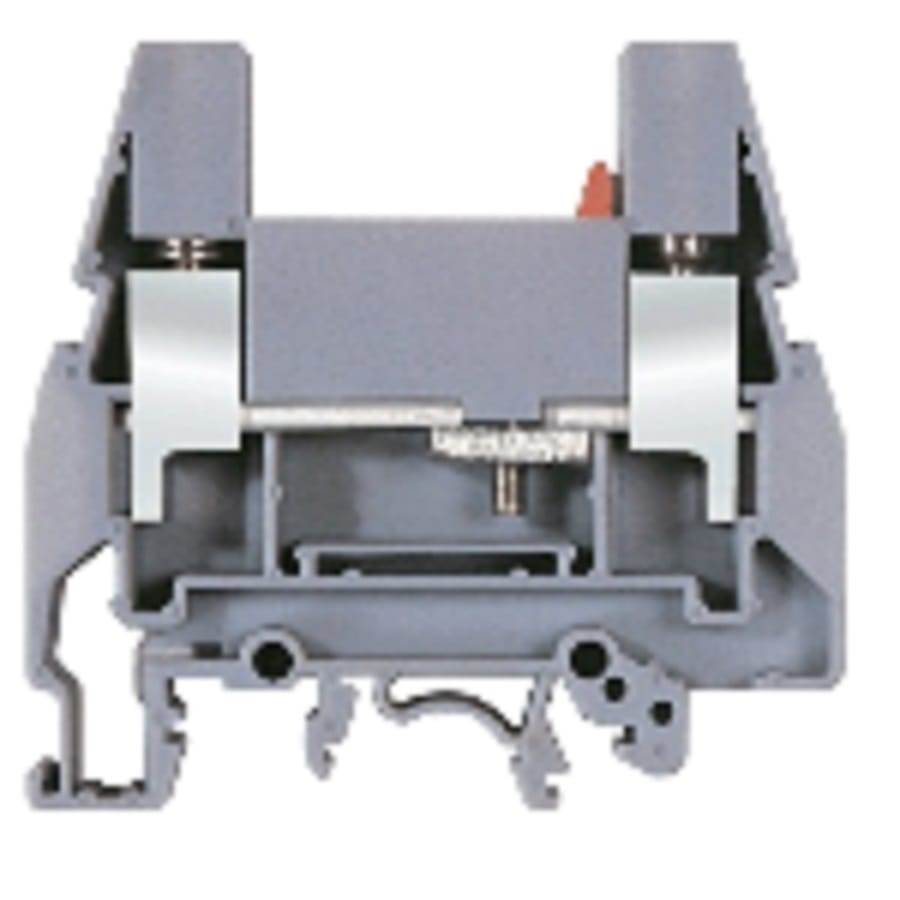

Elmex KUTD 10 End KPTD Plate for Grey -ESP- Every Spare Parts.
General Data
Type
KUTD 10
Wire Termination Technology
Screw Clamp
Ratings
630 V/61 A/10 sq mm/1.2 Nm
GTIN / Harmonize Custom Code
85389000
Standard Packing Qty
50
Country of Origin
India
Dimensions & Weight
Height (mm)
57.5
Height (inches)
2.26
Width (mm)
61
Width (inches)
2.4
Thickness (mm)
8
Weight For Standard Packing Qty (Kg)
1.51
Material Data
Housing
PA 66
Standard Colour
Gray
Other Colour Variants
Black, Blue, Grey, Red, Yellow
Rated Conductor Size
Stranded Wire ? min (sq mm)
1.5
Stranded Wire ? max (sq mm)
10
Solid Wire ? min (sq mm)
1.5
Solid Wire ? max (sq mm)
16
Ratings ? IEC
Standard
IEC 60947-7-1
Rated Voltage (V)
630
Rated Current(A)
61
Rated Cross Section (sq mm)
10
Short Time Withstand Current (kA)
1.2
Rated Impulse Withstand Voltage (kV)
8
Pollution Degree
III
Ratings ? ATEX
Rated Voltage (V)
420
Rated Current (A)
61
Rated Cross Section (sq mm)
10
Ratings ? CSA
Rated Voltage (V)
600
Rated Current (A)
65
Wire Cross Section ? min (AWG)
10
Wire Cross Section ? max (AWG)
6
Ratings ? uL
Rated Voltage (V)
600
Rated Current(A)
65
Conductor Size ? min (AWG)
10
Conductor Size ? max (AWG)
6
