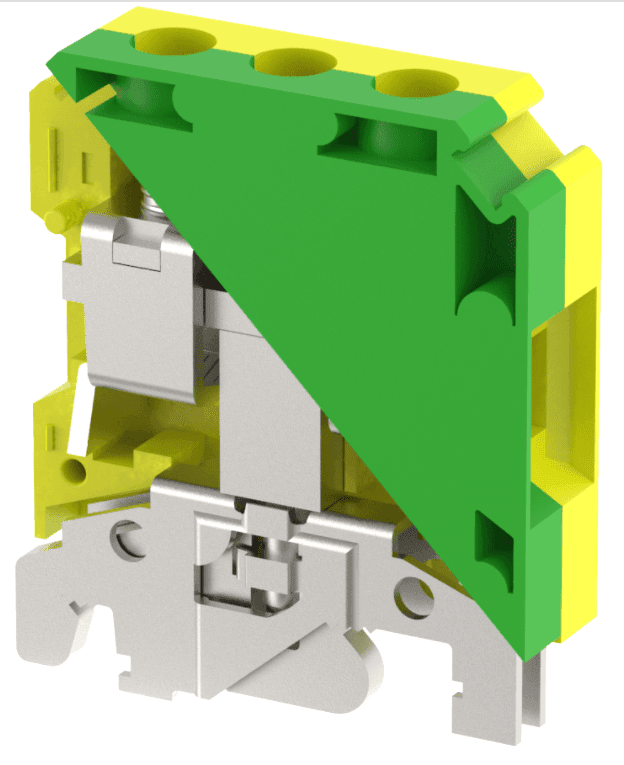

Elmex ET 16 16 sq mm 1.2 Nm Earth Terminal Std Colour Screw Connection
ET 16 Std.Colour Earth Terminals
₹151.00
Elmex ET 16 16 sq mm 1.2 Nm Earth Terminal Std Colour – ESP- Every Spare Parts.
| General Data | |
| Type | ET16 |
| Wire Termination Technology | Screw Connection |
| Ratings | NAP V / NAP A / 16 sq mm / 1.2 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty | 50 |
| Country of Origin | India |
| Dimensions & Weight | |
| Height (mm) | 58.5 |
| Height (inches) | 2.05 |
| Width (mm) | 45 |
| Width (inches) | 1.77 |
| Thickness (mm) | 12.5 |
| Weight For Standard Packing Qty (Kg) | 2.38 |
| Material Data | |
| Housing | PA 66 |
| Standard Colour | Green-Yellow |
| Other Colour Variants | N/A |
| Rated Conductor Size | |
| Stranded Wire – min (sq mm) | 6 |
| Stranded Wire – max (sq mm) | 16 |
| Solid Wire – min (sq mm) | 6 |
| Solid Wire – max (sq mm) | 25 |
| Ratings – IEC | |
| Standard | IEC 60947-7-2 |
| Rated Voltage (V) | NAP |
| Rated Current(A) | NP |
| Rated Cross Section (sq mm) | 16 |
| Short Time Withstand Current (kA) | 1.92 |
| Rated Impulse Withstand Voltage (kV) | NAP |
| Pollution Degree | III |
| Ratings – uL | |
| Rated Voltage (V) | 0 |
| Rated Current(A) | 0 |
| Conductor Size – min (AWG) | 12 |
| Conductor Size – max (AWG) | 3 |
PAN India Delivery and Cash on Delivery (COD) available.
Product may differ (eg. colour, appearance) from the product Image displayed on website. Kindly check the technical specifications provided in description to make better purchase decision.
Specification: Elmex ET 16 16 sq mm 1.2 Nm Earth Terminal Std Colour Screw Connection
|
||||||
| Dimensions | ||||||
|---|---|---|---|---|---|---|
|
||||||
